In the highly competitive metal fabrication, automotive, and industrial manufacturing sectors, producing pre-bent tubular assemblies is a notoriously difficult multi-step challenge. Traditionally, fabricating complex components with holes, slots, and mitered ends meant processing a straight tube first, and then bending it. However, the physical bending process naturally introduces stretching, twisting, and dimensional distortion, leaving prior cuts warped and out of alignment.
To solve these headaches, forward-thinking manufacturers are flipping the sequence: they bend the tubing first, then utilize a specialized tube laser cutting machine for precision post-bend cutting.
When a leading Turkish manufacturer faced the challenge of adding complex end cuts and feature holes to pre-bent 34x1.5mm circular steel tubing, they integrated the LONX LASER LX-K6 series. By utilizing this high-speed tube laser cutting machine, they completely revolutionized their post-bend process—delivering spotless accuracy without the risk of dimensional distortion.
Customer Region: Bursa / Kocaeli Industrial & Automotive Hub, Turkey
Industry: Metal Fabrication & Industrial Tubing
Machine Model: LONX LASER LX-K6 High-Speed Laser Tube Cutting Machine
Primary Workpiece: Bent 34x1.5mm circular steel tubing (1.5mm wall thickness)
Key Applications: Automotive exhaust assemblies, vehicular frame components, and custom structural furniture
Historically, processing feature-heavy bent tubing on a standard production line required a "cut-first, bend-second" workflow. When applied to 34x1.5mm tubing, this method introduced three critical manufacturing errors:
Severe Feature Distortion: When straight 34x1.5mm tubes are bent, pre-cut holes or slots near the bend zones stretch and distort, making assembly difficult and causing parts to fail quality control.
The "Springback" Issue: Metal naturally "springs back" slightly after being bent, causing small variation between parts. With pre-cut tubes, this variation meant that features on the finished, bent parts rarely ended up in their exact 3D coordinates.
High Fixturing & Labor Costs: Trying to manually drill, punch, or mill holes onto a pre-bent, irregular workpiece is labor-intensive, requires expensive custom jigs, and regularly results in high scrap rates due to human error.
The solution was clear: the tubes had to be bent first, and cut second. However, traditional manual and mechanical post-bend cutting was far too slow to keep up with export-level demand.
To resolve these quality and speed challenges, the manufacturer introduced the LONX LASER LX-K6 to their production line. Engineered as a high-speed, high-precision fiber laser system for small-to-medium profiles, the LX-K6 proved highly adaptable for post-bend laser cutting.

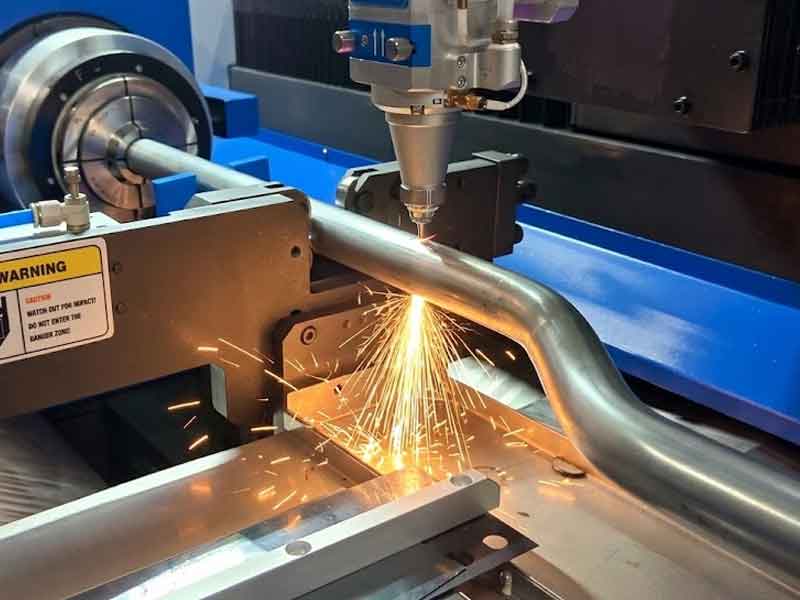

Standard laser tube cutters rely on continuous, flat material movement. Since the 34x1.5mm tubing was pre-bent, the manufacturer utilized customized, multi-point pneumatics and positioning fixtures to secure the non-linear workpieces. The LX-K6’s adaptive autofocus cutting head dynamically adjusts to accommodate slight coordinate variances caused by the bending process.
With 1.5mm thin-walled steel, traditional mechanical trimming and drilling create heavy inner and outer burrs. The LX-K6’s high-precision fiber laser cuts, slots, and trims the bent parts in seconds. The focused heat vaporizes the steel instantly, leaving spotlessly clean edges that are immediately ready for final welding without manual deburring.
Previously, features on the 34x1.5mm tubing were processed across multiple stations. Using the LX-K6, the manufacturer was able to combine mitered end cuts, circular bolt holes, and locking slots into a single software file. Moving to this integrated "all-in-one" laser processing cut cycle times by more than 60%.
Within three months of commissioning the LX-K6, the Turkish facility reported massive performance and quality improvements:
100% Feature Accuracy: By laser cutting after the tube has been bent, natural bend warping and stretch became irrelevant, ensuring every cut and hole stayed perfectly aligned.
Massive Labor Savings: Eliminating custom jig setups, drilling, and manual grinding stations allowed the factory to reduce post-bend labor costs by 45%.
Tighter Production Tolerances: Cuts and slots on the pre-bent 34x1.5mm tubing dropped to under ±0.1mm tolerances, ensuring flawless assembly and robotic welding without gap issues.
Drastic Scrap Reduction: Moving away from manual punches and saws virtually eliminated part-crushing and human error, saving thousands in raw material costs.
In the modern metal fabrication, automotive, and industrial machinery sectors, relying on multi-step manual processing on pre-bent tubes is no longer viable. A dedicated tube laser cutting machine like the LONX LASER LX-K6 bridges the gap between design complexity and high-volume industrial output.
Scaling your fabrication starts with the right equipment. Contact LONX LASER to discover how the LX-K6 and our custom post-bend laser cutting solutions can elevate your workflow.
